Lattice Studio

The problem

A diamond's mistakes show up at deploy time, or in the audit

• Selector collisions

  Two facets claim the same function. One silently wins.

• Init order

  An init runs before the module it depends on is set up.

• Storage overlap

  Two facets write to the same namespace.

• Authority

  Nobody, or the wrong key, ends up able to upgrade.

Each is cheap to fix while composing and expensive once the diamond is live.

Inspiration

Three tools that made hard things feel direct

• Figma

  A canvas you work on directly, in the browser, where the picture is the source of truth.

• AWS Application Composer

  Drag components onto a canvas, and get the deployable definition out the other side.

• Remix

  Open a tab, write a contract, deploy it. No install, no account.

Lattice Studio brings those three ideas to EIP-2535 diamonds: a sheet you compose on, a script that falls out of it, and a deploy from the same tab.

One core, three surfaces

The app, the CLI and CI cannot disagree

• App

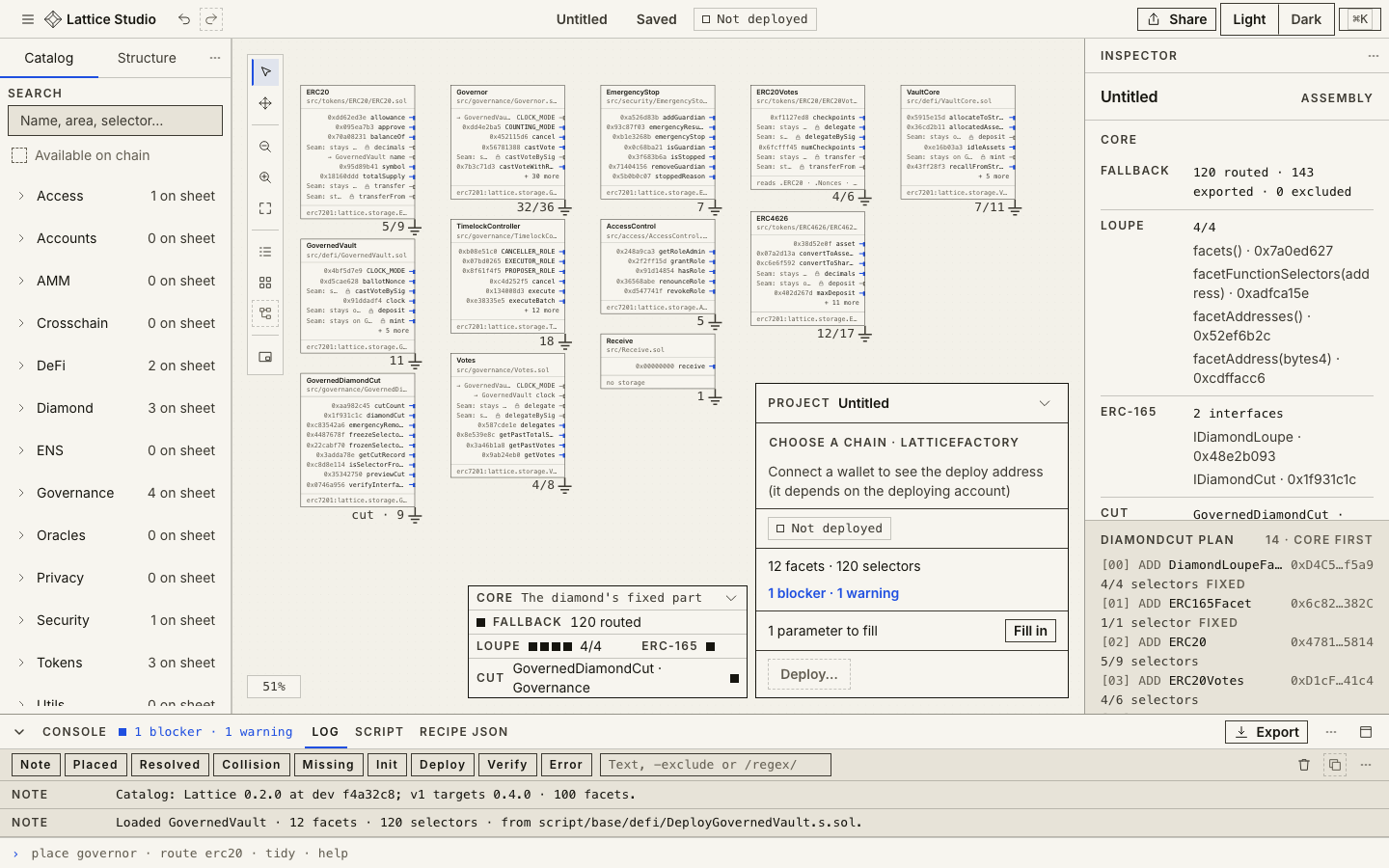

  The sheet, the review dialog and a one-transaction deploy through LatticeFactory or CreateX.

• CLI

  lattice-studio check recipe.json --json, with stable exit codes for pipelines.

• Coding agents

  An agent brief export hands a recipe and its findings to an agent, which runs the same analysis.

Exports: Foundry script, agent brief, recipe JSON, Safe Transaction Builder batch, share link.

How it's built

A pure core, a generated catalog, and tests at every layer

• 3,500

  unit tests

• 1,644

  component tests in a real browser

• 481

  end-to-end flows

• 955

  commits, September 23 to October 1

Bun monorepo. The core has no DOM, network, clock or randomness. The catalog is generated from a pinned Lattice checkout. React and React Flow for the sheet; viem and wagmi in a lazily loaded chain module, the only code that talks to a network. Golden tests run against Lattice's own deploy scripts.

Status

What's real, and what isn't yet

• Real today

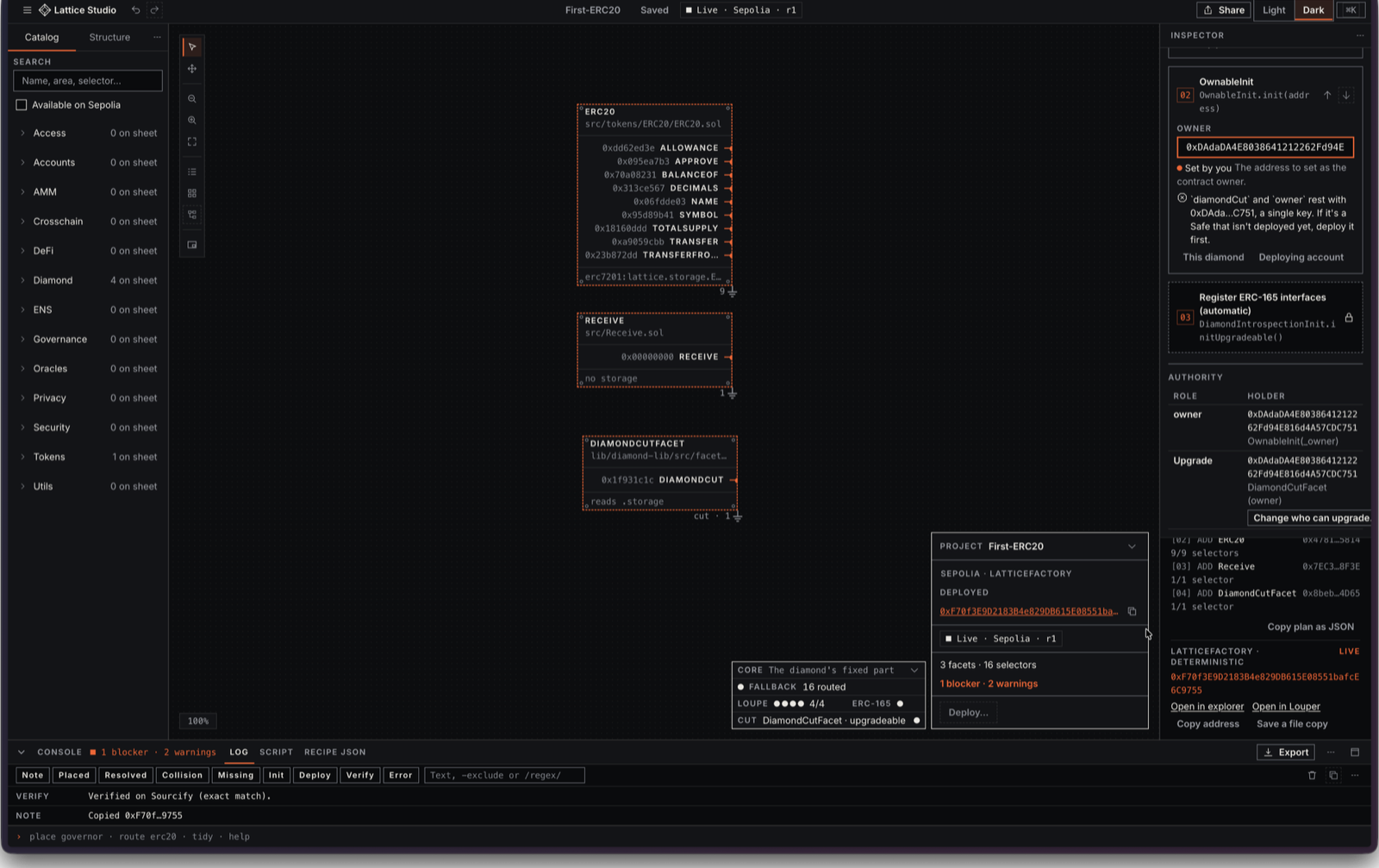

  Compose, check, export and deploy new Lattice diamonds on Sepolia, Base Sepolia, HSKChain Testnet, Hedera Testnet, Avalanche Fuji and Monad Testnet. Works offline after the first load. Nothing leaves your machine until you deploy.

• Provisional

  The catalog is built from Lattice commit 6c8db45, tagged hedera-template-pin-6c8db45 on a feature branch, not a release. Mainnet is off. The CLI is not on npm yet.

Lattice, the facet library, is my earlier open-source work and predates the event. Studio was built inside the hackathon window, with coding agents under my direction.

Next

Beyond the hackathon

• Upgrades of live diamonds.
• Smart-account recipes, once Lattice ships its AccountFactory.
• A re-pin to the tagged Lattice 0.4.0 release, which clears the provisional mark.
• The CLI on npm.

Open the app Studio on GitHub Lattice on GitHub

David Dada · built from Nigeria
